Exchange Overview

For documentation on how to use our staff-facing services, please see the User Guide for College Partners

Transcript exchange with post-secondary partners generally follows the same process regardless of the source and destination of transcript data.

The following diagrams provide an overview of the flow of message exchange between partners in different roles.

Document Exchange​

Transcript exchange is facilitated by the exchange of documents/messages with a particular purpose or intent. In a typical exchange the following documents are used:

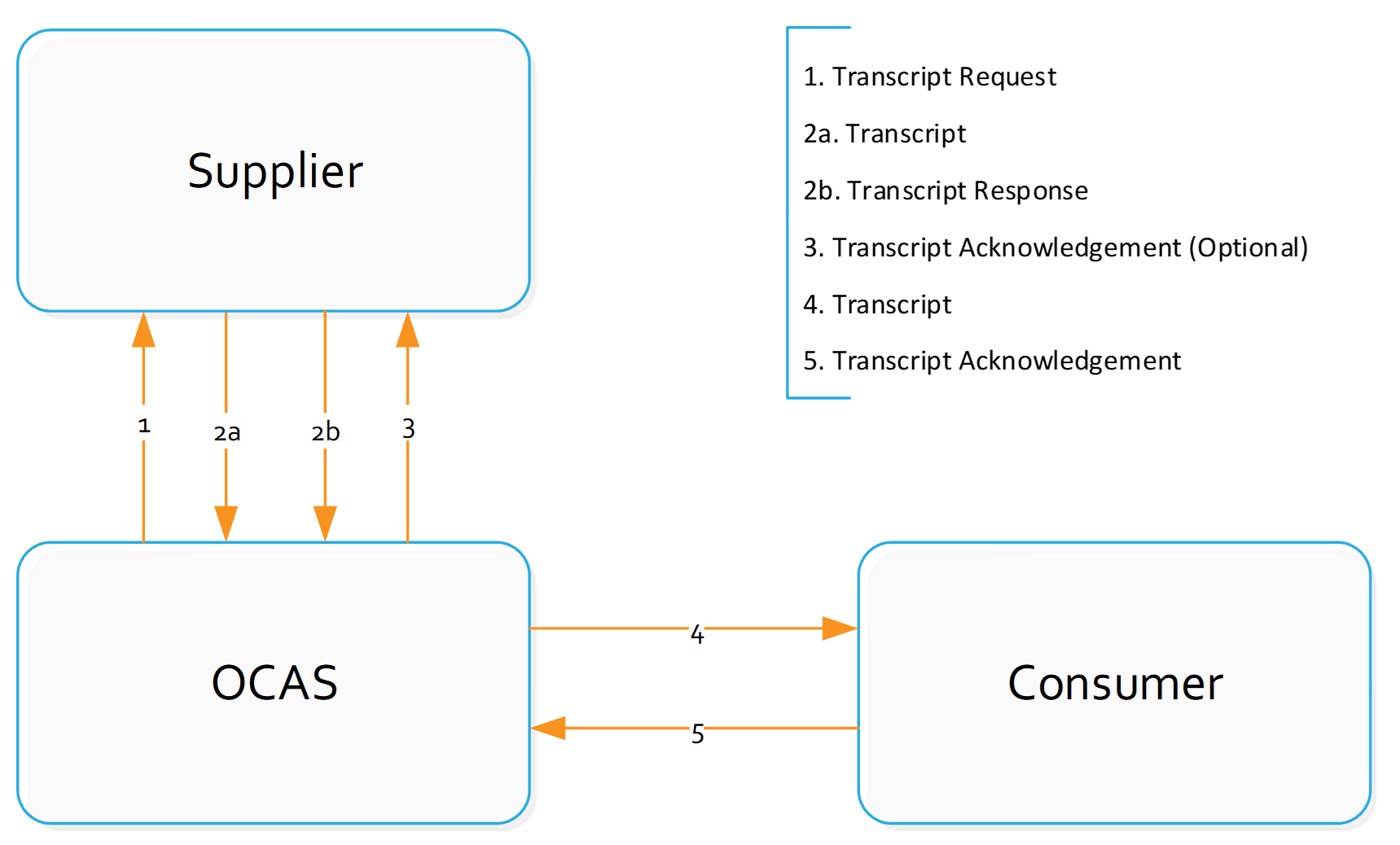

Message Exchange Order

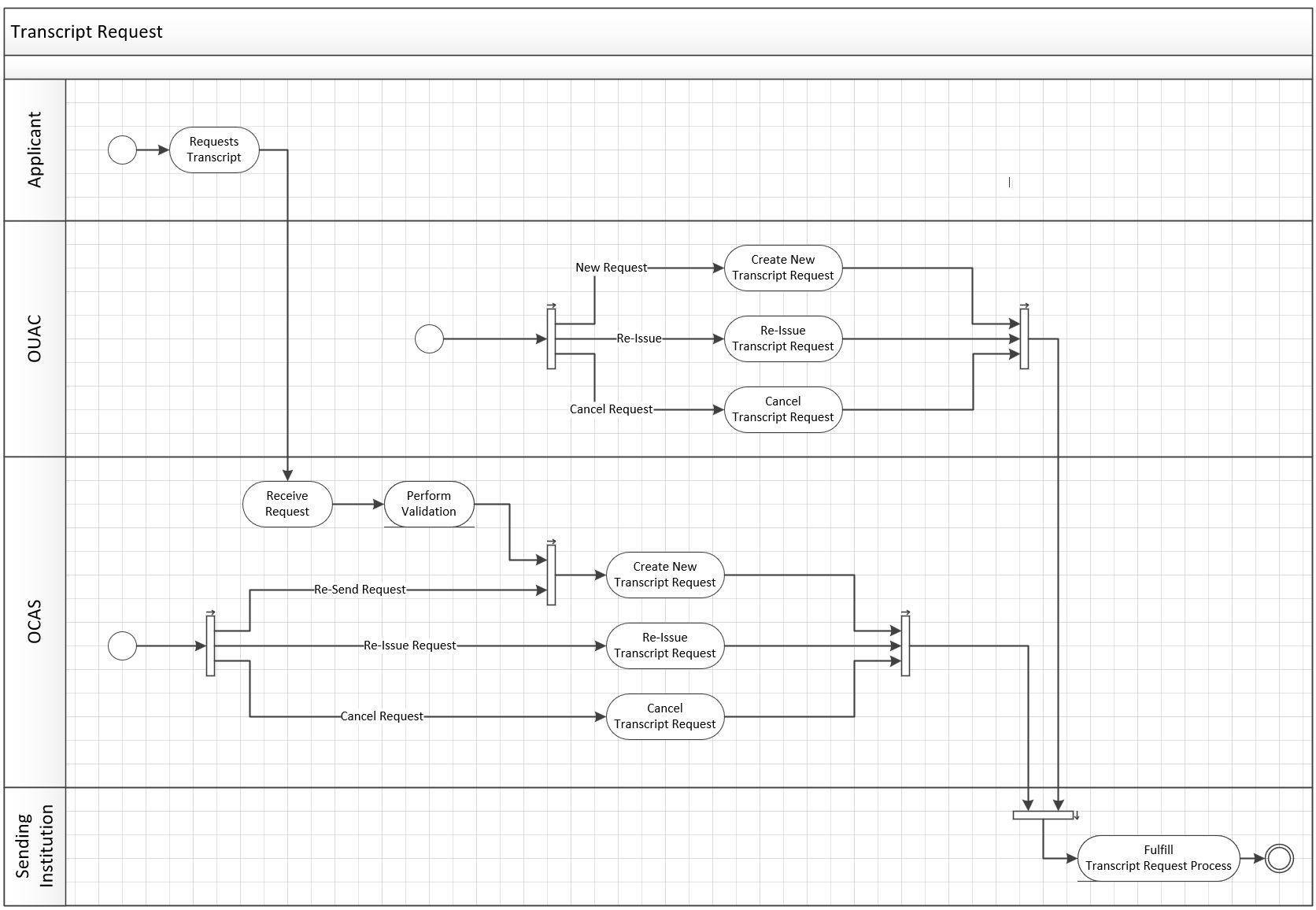

Transcript Request Flow​

This flow diagram describes the exchange of the transcript request to a supplying institution.

Transcript Request Flow

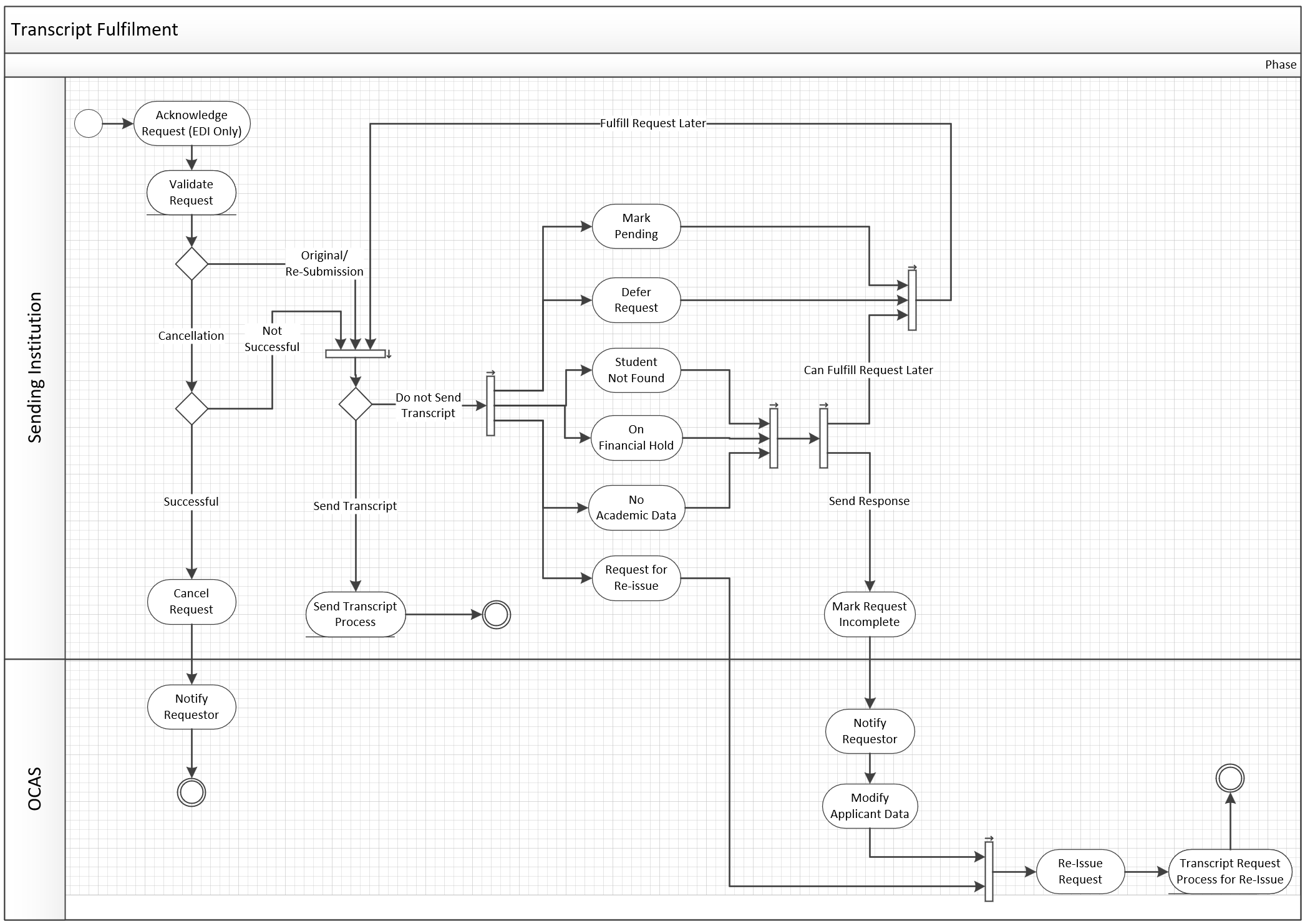

Transcript Fulfillment Flow​

This flow diagram describes the fulfillment of the request by sending either a Transcript or a Transcript Response

Transcript Fulfillment Flow

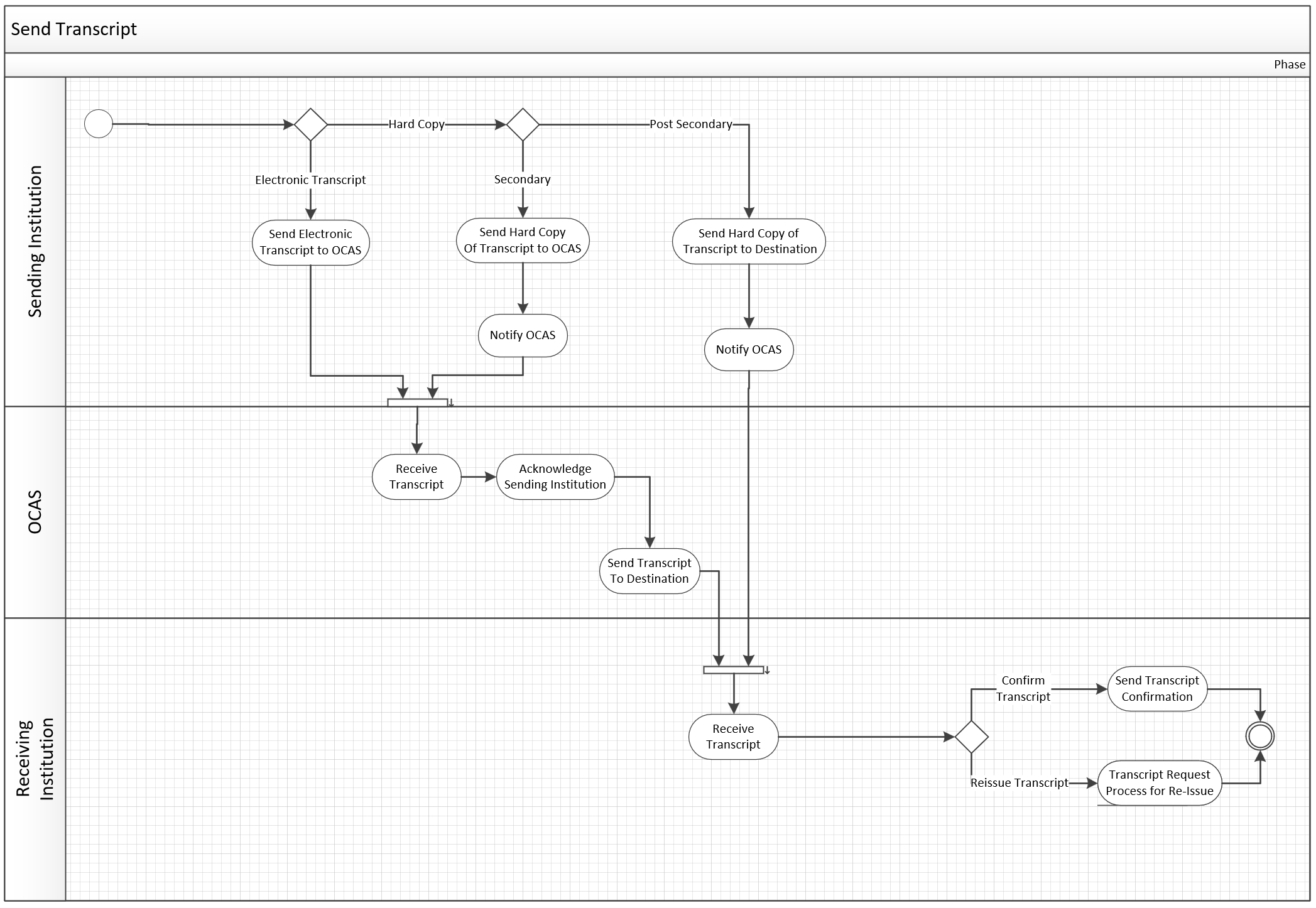

Transcript Send Flow​

This flow diagram describes the exchange of the transcript to the destination institution(s)

Send Transcript Flow

OUAC e-Transcripts​

For reference to exchanges with OUAC, refer to their site GO2 https://go2.ouac.on.ca/resource_type/etranscripts/

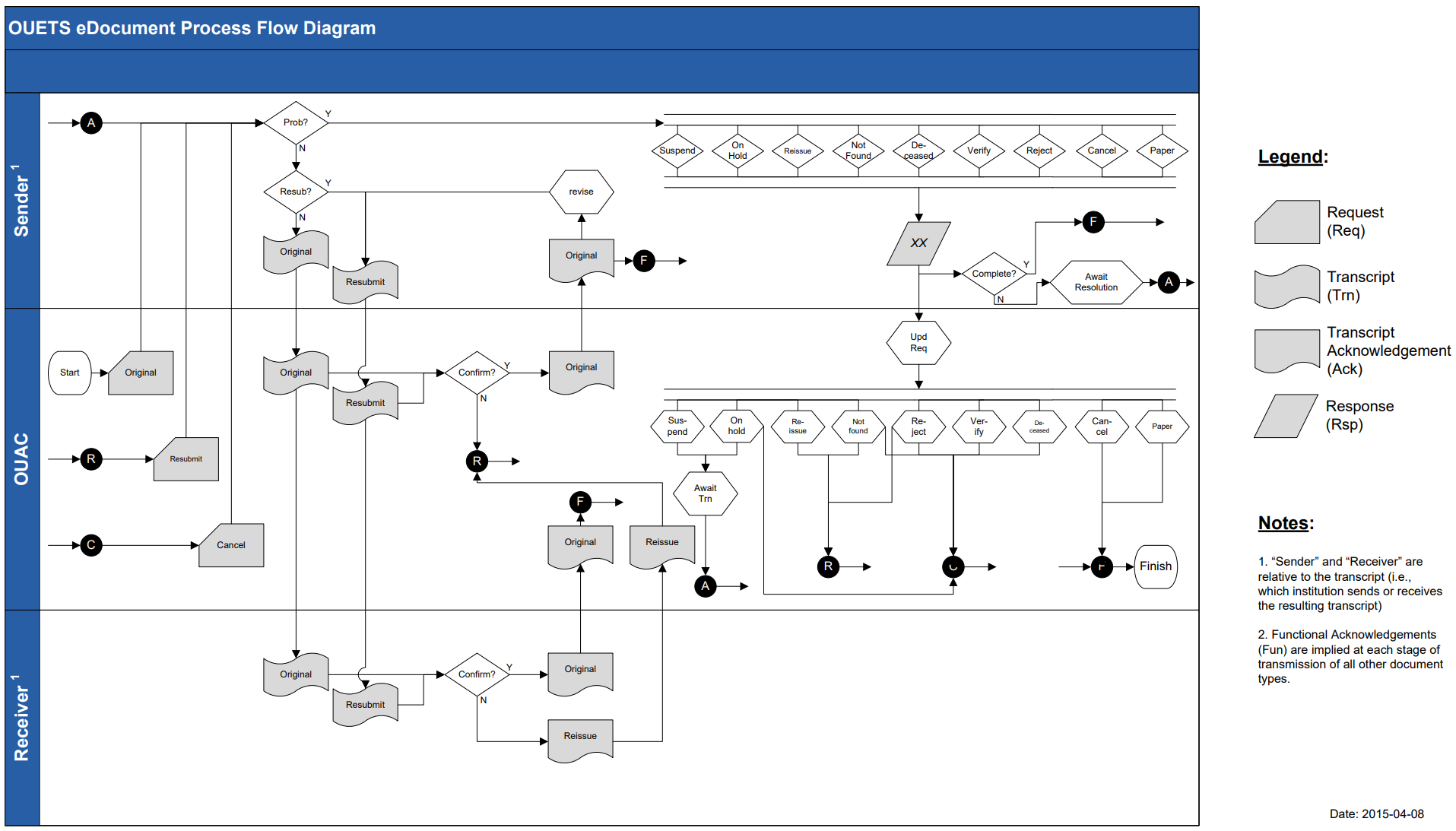

OUAC Document Exchange​

OUETS Process
